As networking technology continues to grow, there is an increasing need for data center applications to accommodate high speed and density. However, space in data centers is often limited, and how to manage more cables in a smaller amount of space. LC (Lucent Connector) uniboot patch cord reduces cable management space compared to LC standard patch cords and represents the best fit for places where space is a concern, which is its main advantage. Let's explore the differences between LC uniboot and LC standard patch cords.

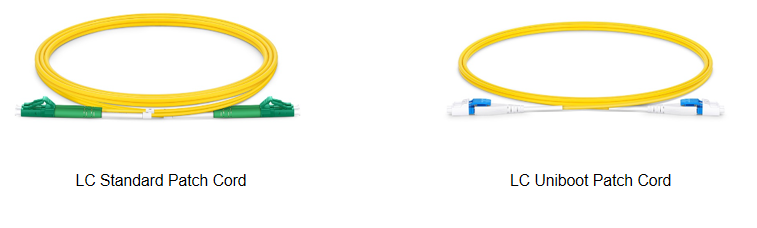

1) Cable Structure
Standard LC duplex connectors typically consist of two separate LC simplex connectors joined by clips, with each connector housing a single optical fiber.
LC uniboot patch cords use a distinctive design that combines two fibers within a single outer jacket. It reduces cable count by up to 50% compared to traditional LC duplex patch cords. By reducing the overall cable diameter, LC uniboot patch cords provide more space-saving, making them ideal for high-density data centers and telecommunications racks.
LC uniboot and LC standard patch cords are available in single-mode (OS1/OS2), multi-mode (OM1/OM2/OM3/OM4/OM4+/OM5), duplex, and simplex fiber types. They are ideal for connecting 1G/10G/40G/100G Ethernet connections.
2) Polarity Reversal
Polarity changes in standard LC duplex patch cords can be inconvenient, especially in high-density cable environments like data centers. Generally, additional tools and re-terminating fiber cables are required, resulting in wasted time and money. Mishandling during the process can also lead to various faults.
LC uniboot patch cords provide easy polarity reversal thanks to their unique connector design (such as the flat clip or switchable connector) compared to LC standard patch cords. Often, polarity changes without extra tools by following a few simple steps. It is important to note that there are different types of LC uniboot patch cords available, and the polarity reversal steps may vary. For example, the following image shows the two most commonly used LC uniboot patch cord types and their polarity reversal steps.
3) Insertion Loss and Cost Saving
LC uniboot patch cord has a lower insertion loss than LC standard duplex patch cord. Low insertion loss keeps the network running fast and smooth. Typically, standard patch cords provide a lower cost than uniboot patch cords. If your network already uses LC standard connectors and does not have specific space or flexibility requirements, continuing with LC standard may be a more cost-effective and convenient choice.
4) Flexibility and Durability
LC uniboot connectors feature polarity-switchable plugs that can be easily converted without the need for tools, making them highly flexible to use. Moreover, LC uniboot patch cords provide high durability and reduce cable congestion when routing.

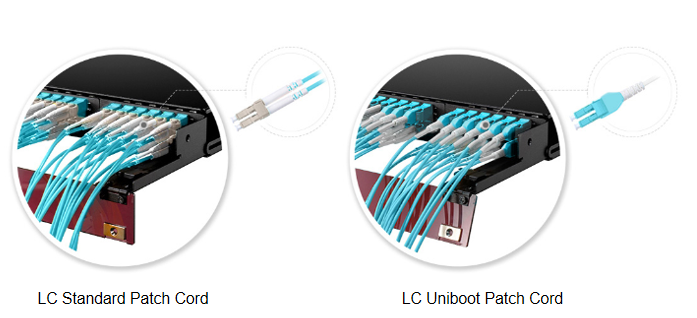

5) Space Limitations
If your application environment has space constraints, such as in high-density racks or small cabinets, LC uniboot patch cord may be a better choice. Its compact design can reduce cable footprint, providing better wiring and cable management. Additionally, the push-pull design of uniboot connectors allows for quick plugging and unplugging without any tool in high-density cabling.
Conclusion
LC uniboot patch cords provide benefits such as easier polarity reversal, space-saving design, lower insertion loss, and diverse connector options than LC standard patch cords. On the other hand, LC standard patch cords provide cost and time effectiveness. The choice between LC uniboot and LC standard patch cords depends on your specific needs.
