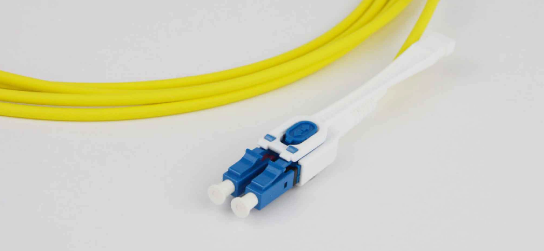

LC (Lucent Connector) uniboot fiber optic patch cord (or patch cable) is the ultimate solution for high-density data center applications. It provides high flexibility, low insertion loss, space-saving design, and reduces cabling congestion in high-density patch fields. This article is going to explore the world of LC uniboot patch cords.
What is the LC Uniboot Patch Cord?

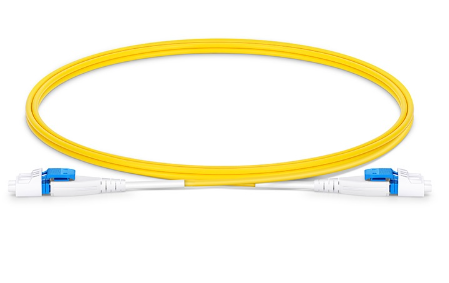

LC uniboot patch cord is a round duplex fiber optic cable with uniboot duplex LC connectors on both sides. It allows one cable to carry both fibers and reduces cable congestion when routing. LC uniboot patch cord is suitable for high-density fiber patching in data centers, which needs space saving and reduces cable management troubles.
Polarity Reversal

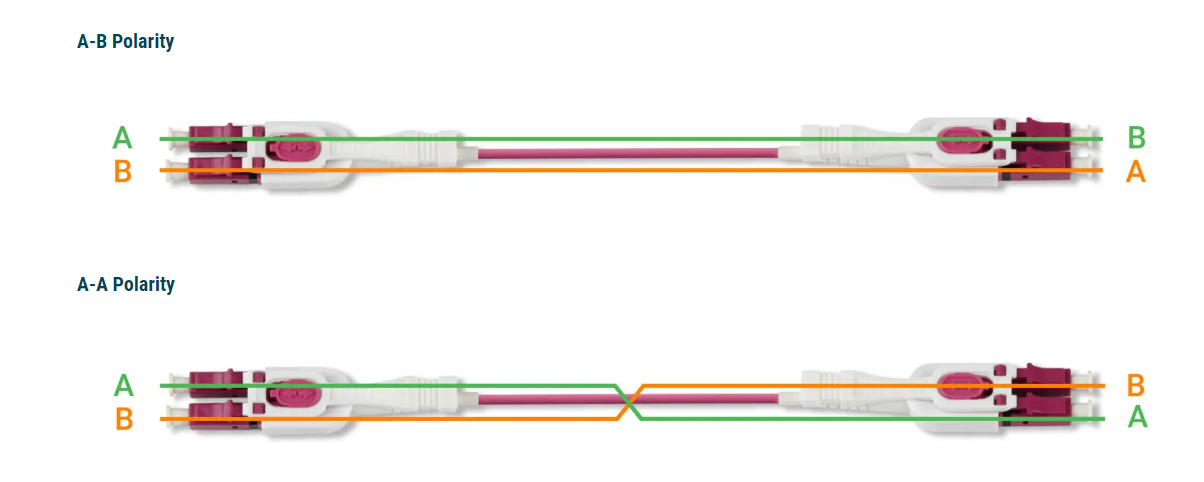

For the LC uniboot patch cord, the reverse-polarity design allows quick and easy polarity conversion without exposing the fibers or needing any tools. LC uniboot patch cords can easily switch between polarity A-B and A-A, which means the cables can function as LC duplex or simplex. Users can reverse polarity on-site quickly and easily without the risk of exposing or damaging fibers.
Two types of design principles are applied in LC uniboot patch cords for polarity reversal:
(1) Type One: Switching A and B positions in the connector for each fiber.
(2) Type Two: Rotate the connector 180 degrees to exchange the position.

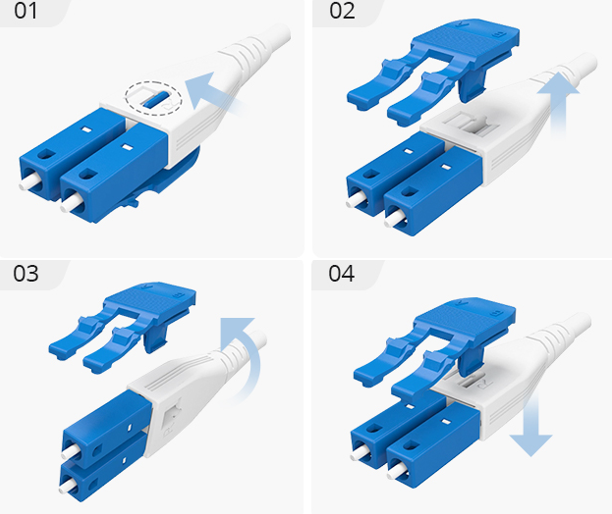

It is important to note that there are different types of LC uniboot patch cords available, and the polarity reversal steps may vary. For example, here are four steps to switch the polarity from A-B to A-A without exposing fibers or using tools.
1) Unlock the latch from the back
2) Extract the clip
3) Rotate the connector body 180°
4) Re-attach the clip and lock it
Types of LC Uniboot Patch Cords

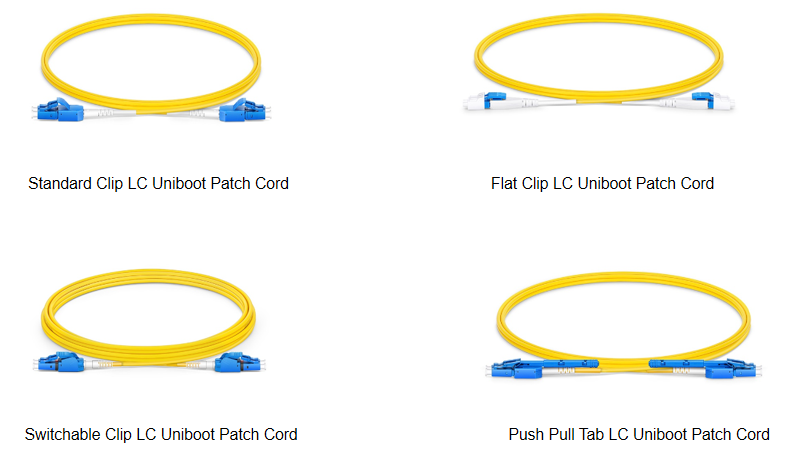

LC uniboot patch cords are available in the standard clip, flat clip, switchable clip, and push-pull tab types. The Standard clip LC uniboot patch cord has zirconia ceramic ferrule, and the precision ferrules can reach up to 500 times the insertion lifespan. The flat clip LC uniboot patch cord has a flat clip feature, which creates extra space between connectors and improves airflow. The switchable clip LC uniboot patch cord has a unique design that allows switching polarity without using any tools. It is used in data centers, where cable counts are high and space is limited. Push-pull tab LC uniboot patch cord has a push-pull tab feature that allows quick plug without tools in high-density space.
Features and Benefits
LC uniboot patch cord has the following features and benefits:
1. Uniboot design and easy polarity reversal
2. Low insertion loss and cost
3. High return loss and density
4. High flexibility and durability
5. High reliability and stability
6. Bend insensitive fiber, OFNP, LSZH and PVC jacket
7. OM5, OM4+, OM4, OM3,OM2,OM1, and OS2 fiber types
8. Available in standard/flat/switchable clip and push-pull tabs connector types
Application Scenarios
LC uniboot patch cord is used in cabinet connection, ceiling wiring, and under-floor wiring in the data center application scenarios. Also, it is used in SAN (Storage Area Network), enterprise, campus, central office, data communication networks, telecom networks, FTTx, CATV, transceivers, etc.
Conclusion
LC uniboot patch cord improves the effectiveness and flexibility of cable management while saving a lot of space. It is an ideal solution for a high-density wiring center and meets various indoor installation needs.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
